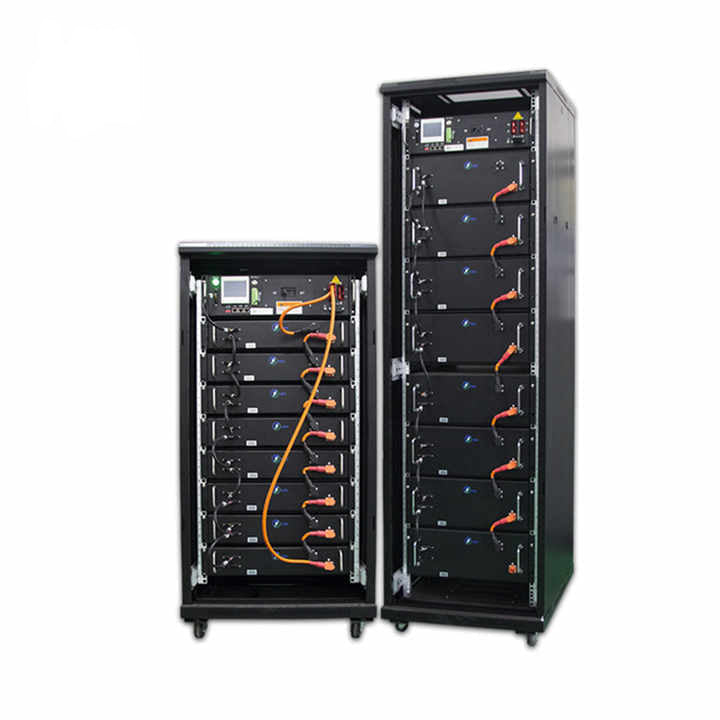

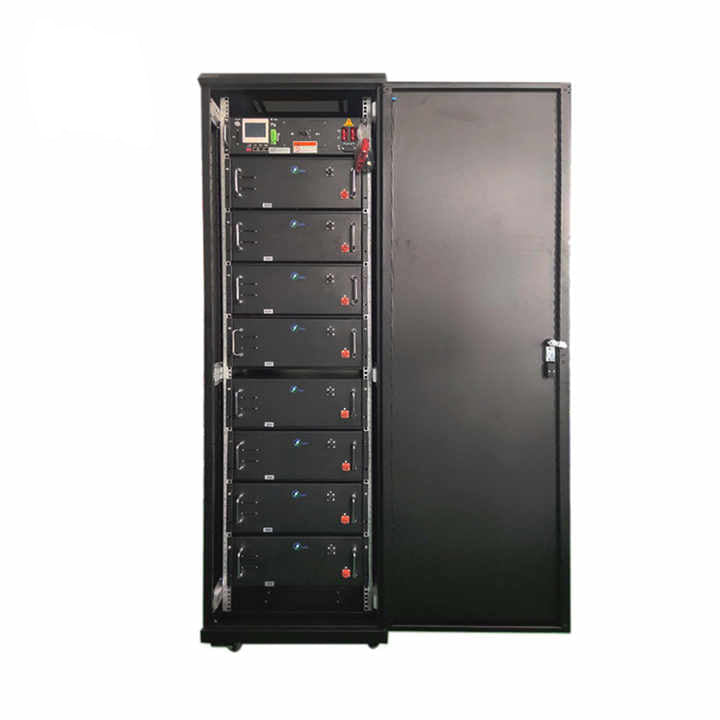

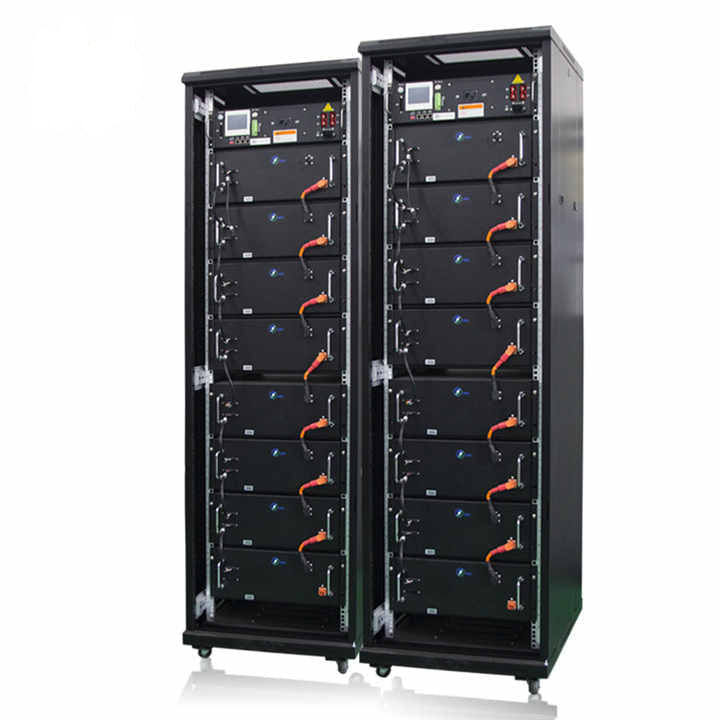

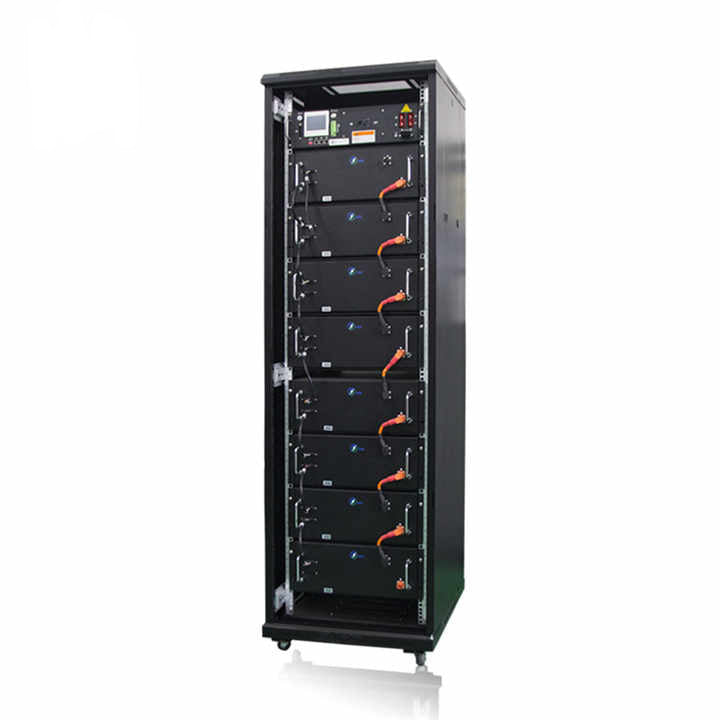

High Voltage DC Lithium-ion Battery System
High Voltage Series | 384V 75Ah
KonkaEnergy is also custom made High Voltage storage solutions, specially composed to your needs. Contact us for more information.
PRODUCT SPECIFICATION
| Item | Technical Parameters |
| The Machine Parameters | |
| Battery Type | Lithium Iron Phosphate Battery (LiFePO4) |
| Nominal Voltage | 384V |
| Nominal Capacity | 75Ah |
| Rated Reserved Energy | 28.8KWh |
| Size ( The width is suitable for 19-inch Cabinets and the height is 47U) | 600(W)*800(L)*2260(H)mm |
| Weight | 450kg |
| Maximum Charging Current | 75A |
| Maximum Discharging Current | 75A |
| Charge Cut-off Voltage | 424~438V |
| Discharge Cut-off Voltage | 300~324V |
| Number of Battery Module Per Cabinet | 8pcs |
| Number of Battery Cells Per Module | 15psc |
| Operation Temperature Range (Charge) | 0°C~+45°C |
| Operation Temperature Range (Discharge) | -10°C~+60°C |
| Protection Function | Over-current/ Over-voltage/ Under-voltage/ Short Circuit/ Temperature Protection |
| Protection Grade | IP20 |
| Communication Interface | RS485, CAN |
| 48V 75Ah Battery Module Parameters | |
| Configuration | 15S1P |
| Nominal Capacity | 75Ah |
| Rated Voltage | 48V |
| Internal Resistance | ≤ 40mΩ |
| Maximum Charging Current | 75A |
| Maximum Discharging Current | 75A |
| Charge Cut-off Voltage | 54.75V |
| Discharge Cut-off Voltage | 37.5V |
| Operation Temperature Range (Charge) | 0°C~+45°C |
| Operation Temperature Range (Discharge) | -10°C~+60°C |
| Storage Temperature | 0°C~+40°C |
| Storage Humidity | ≤ 90% |
| CBMS Main Technical Parameters | |
| Communication Interface with PCS | RS485/CAN |
| Communication Interface with BMU | CAN |
| Maximum Quantity of BMUs | 13 |
| Power | 24VDC (18V~28V) |
| Net Weight | 17kg |
