5.015MWH BESS 20' HQ Container, Liquid Cooling
5.015MWH BESS 20' HQ Container, Liquid Cooling

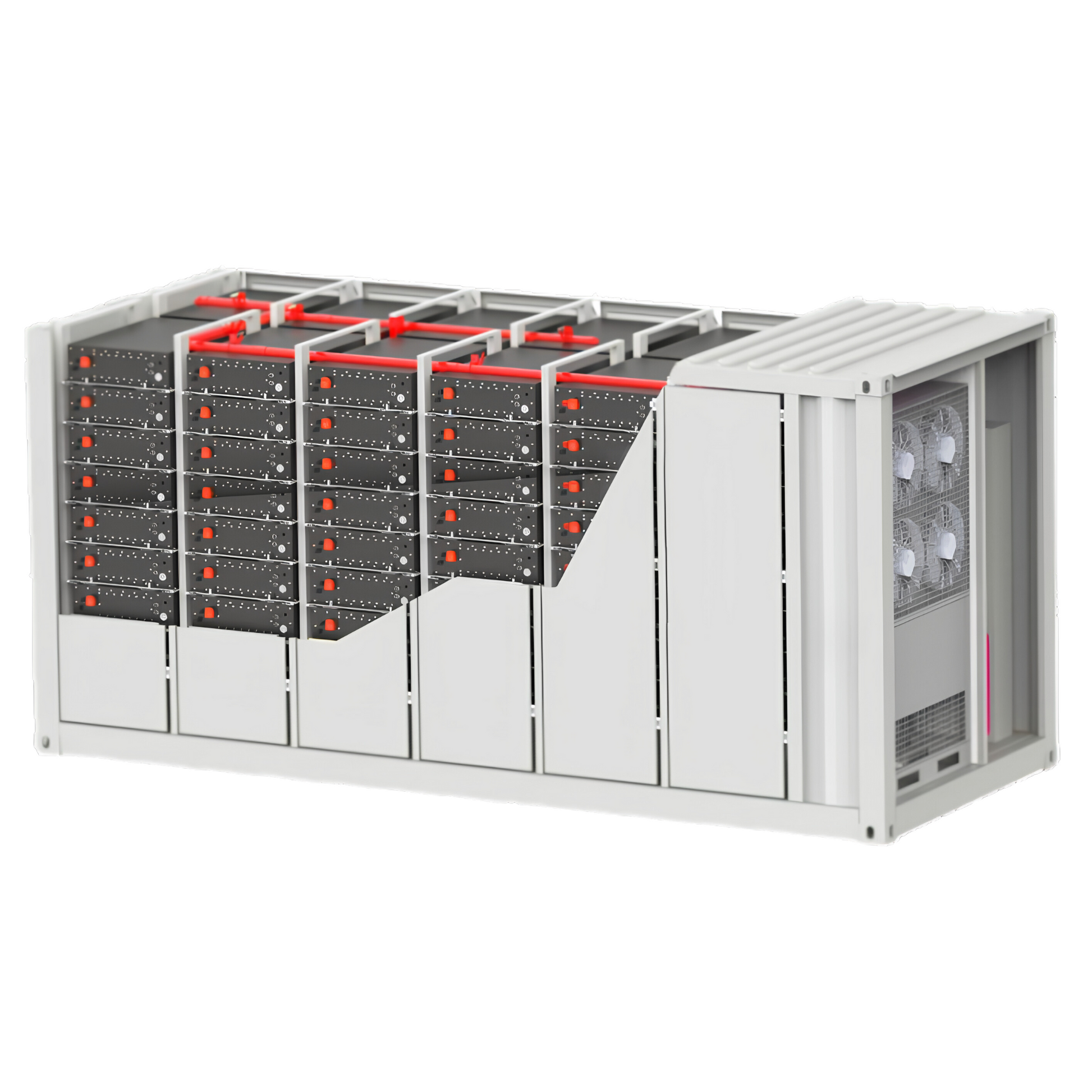

KonkaEnergy 5.015MWh Liquid Cooled Modular BESS (New Version)
The KonkaEnergy 5.015MWh Modular Containerized Battery Energy Storage System (BESS) is a high-performance, utility-scale solution designed for grid balancing, frequency regulation, and micro-grid applications. This newly updated version maximizes energy density within a standardized 20HQ container, utilizing an aisleless design to deliver high-yield energy storage with a minimized footprint.

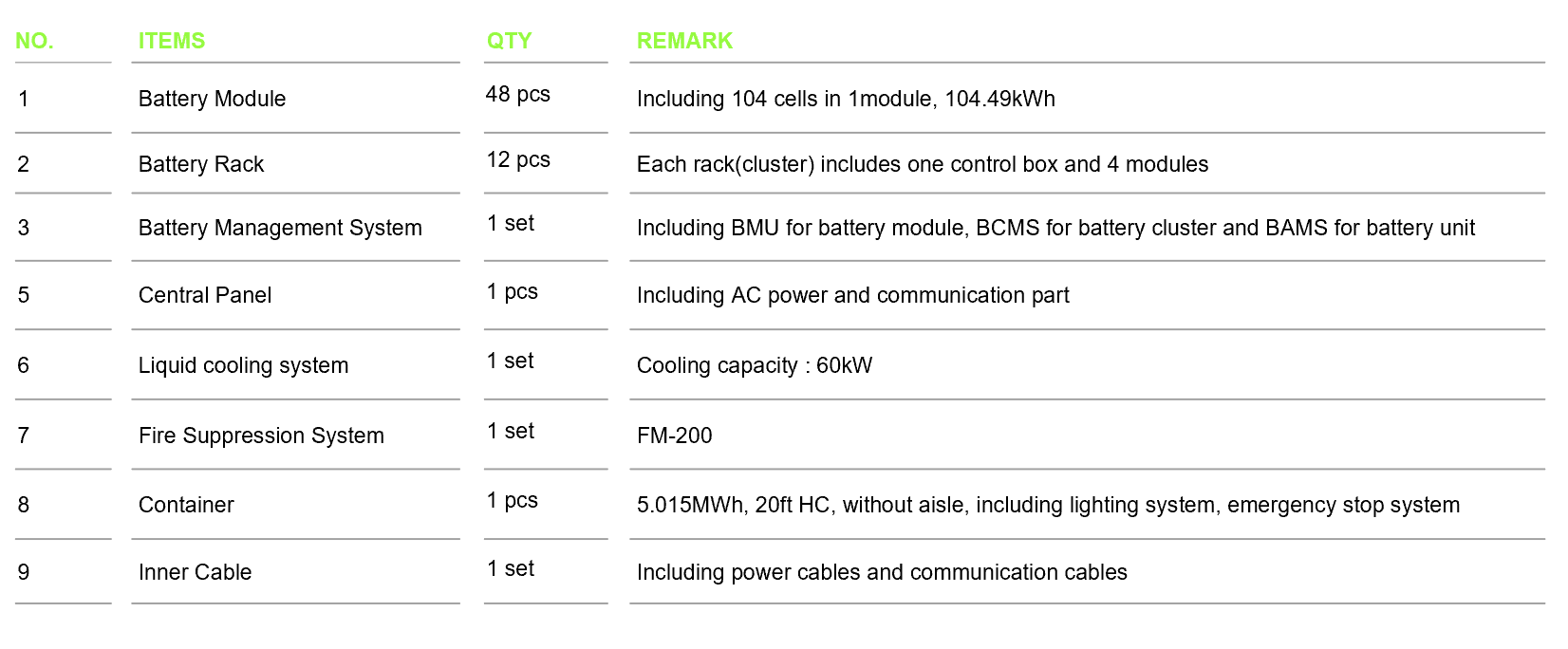

Core Configuration & Components
This BESS is engineered for reliability and scalability through its sophisticated modular architecture:
- Battery System: Features 48 high-capacity battery modules, each containing 104 LFP cells (3.2V/314Ah) for a total of 104.49kWh per module.
- Rack Architecture: Consists of 12 battery racks (clusters), with each rack integrating 4 modules and an independent control box.
- Management System: A comprehensive three-tier BMS including BMU (Module), BCMS (Cluster), and BAMS (Unit) for precise monitoring.
-
Integrated Power: Includes a central panel for AC power and communication, along with an integrated UPS and DC pane

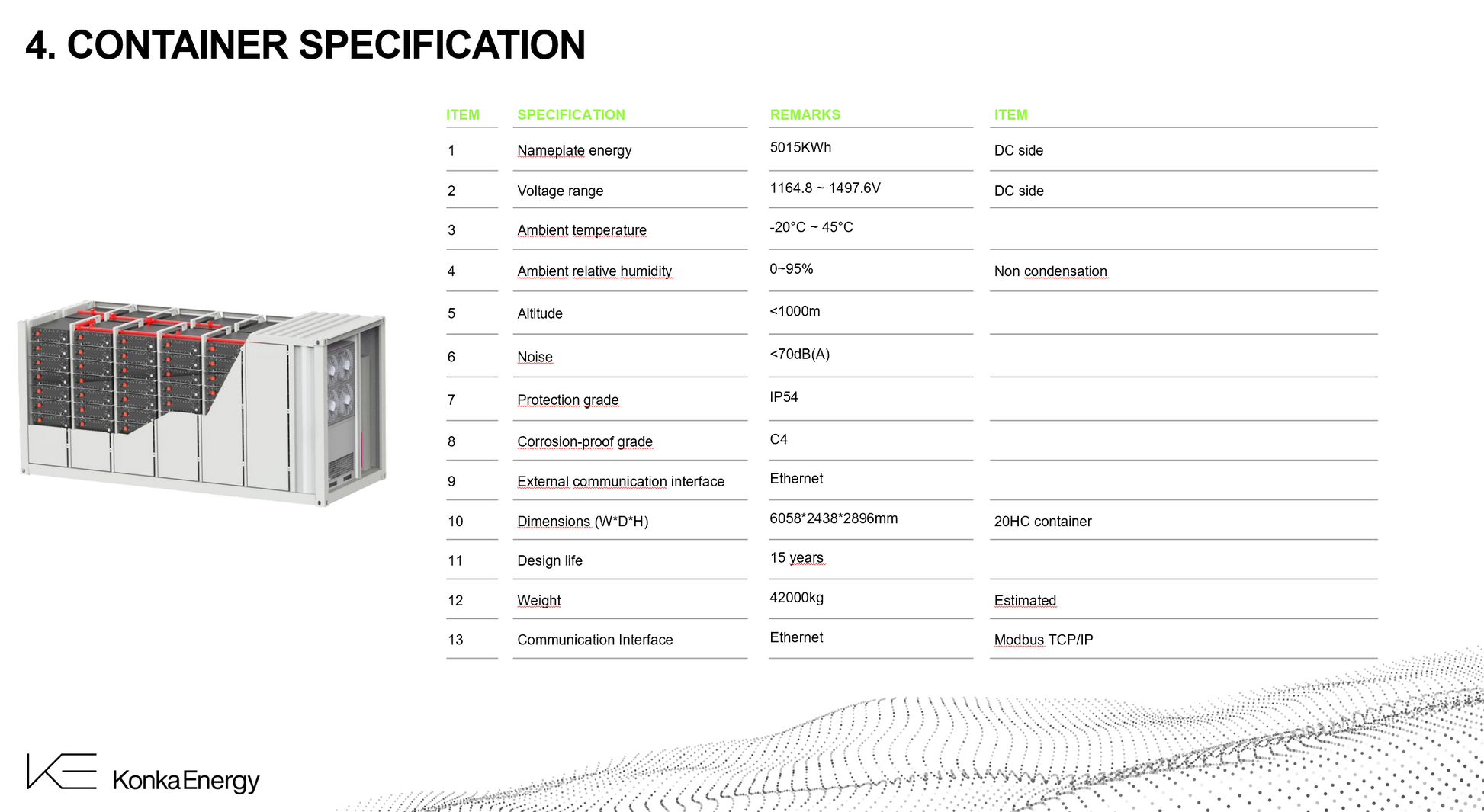

Key Technical Specifications
|
Feature |
Specification |
|
Nominal Capacity |
5.015MWh |
|
Nameplate Energy (DC Side) |
5015.9616kWh |
|
Battery Type |
Lithium Iron Phosphate (LFP) |
|
Voltage Range (DC Side) |
1164.8V ~ 1497.6V |
|
Cooling Capacity |
60kW Liquid Cooling |
|
Operating Temperature |
-20°C to 45°C |
|
IP Rating / Corrosion Grade |
IP54 / C4 |
|
Dimensions (WDH) |
6058 x 2438 x 2896mm |
|
Design Life |
15 Years |
Performance & Safety Features
- Intelligent Thermal Management: Advanced liquid cooling design ensures working temperature consistency, significantly prolonging battery service life.
- Multi-Level Safety: Employs a cascade protection mechanism (software and hardware), comprehensive insulation monitoring, and an FM-200 fire suppression system.
- Active Equalization: Features a self-developed active equalization algorithm to increase the depth of system use and overall efficiency.
- Smart Integration: Fully compatible with Ethernet (Modbus TCP/IP) and RS485 interfaces, supporting EMS scheduling and SCADA software monitoring.

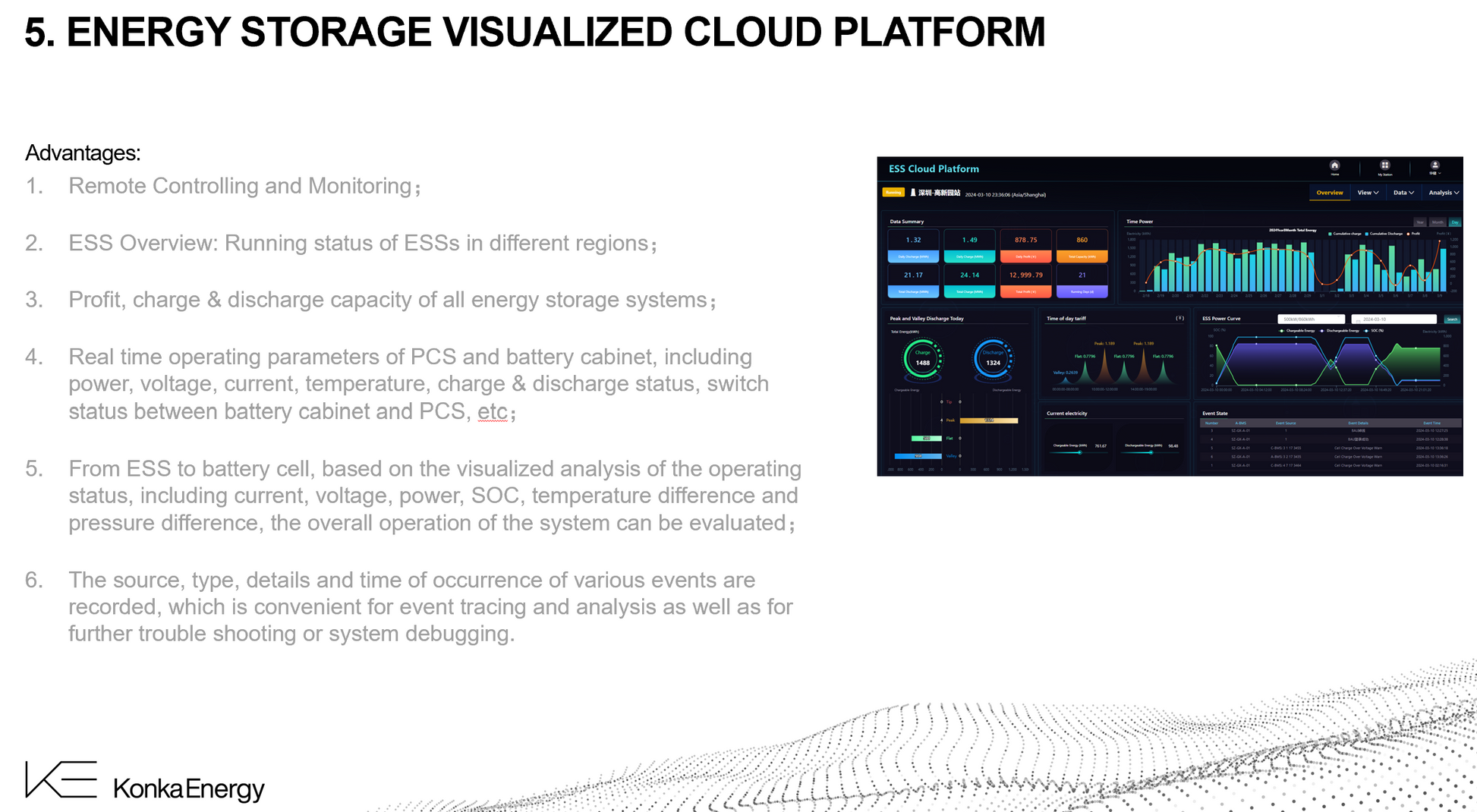

Visualized Management (Optional)
Maximize your ROI with the Energy Storage Visualized Cloud Platform, which allows for full life cycle monitoring:
- Remote Control: Monitor real-time operating parameters (power, voltage, SOC, and temperature) for PCS and battery cabinets.
- Data Analysis: Access detailed reports on profit, charge/discharge capacity, and individual cell status for advanced troubleshooting.
