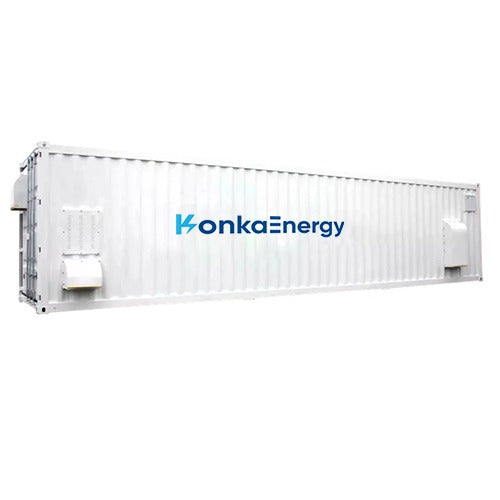

7.53MWh - 1000V BESS 40' HC Container
7.53MWh - 1000V BESS 40' HC Container
40HC containerised battery energy storage system with 7.53MWh capacity at 1000V. Designed for peak shaving, price arbitrage, grid balancing, energy trading, frequency regulation, and data centre applications. Industrial-grade solution for utility-scale energy management and grid stability.
Product Description:

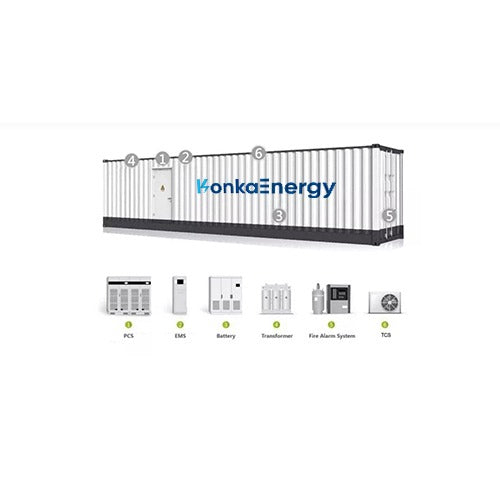

Based on lithium iron phosphate battery(LFP) and power conversion technology, Konka Energy designed the modular containerized battery energy storage system (BESS),which was successfully used in manyscenarios, such as frequency regulation of power plant, peak shifting of user side, and micro grid applicationwith wind power & solar power.
Features:
1. Highly modularized design make it easy to be transported, installed,constructed and maintained.
2. Reasonable and design enables the system to be operated under various scenarios

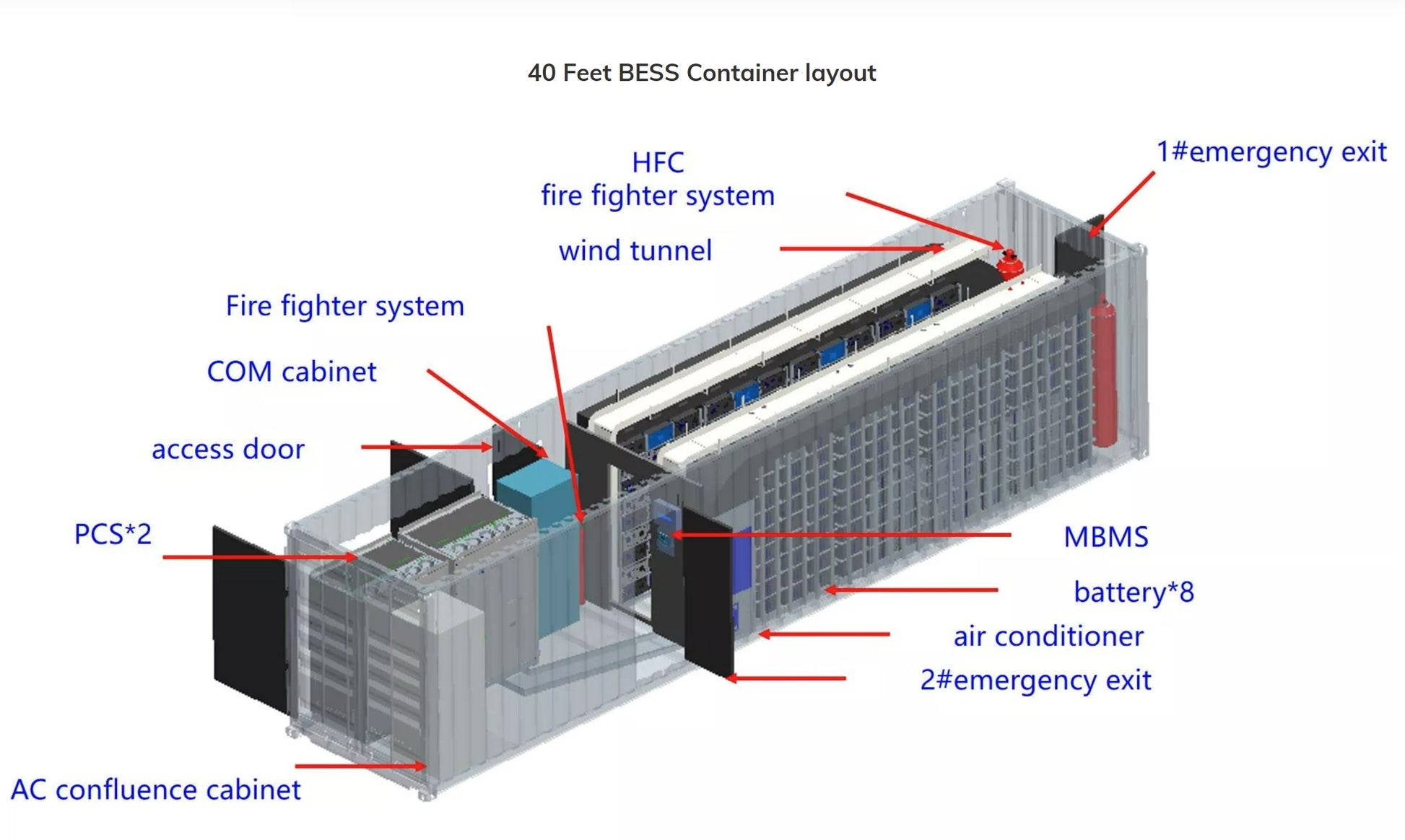

3. Battery System:4-evel design makes them easy to be monitored and controlled: Cell level, Module level, Rack level and Containerlevel:
4. BMS: Ensures the battery system to run in a "healthy" condition by monitoring and controling the current, voltage,temperature and other relative parameters of each cells, modules, racks and containers.
5. Cooling system: Using a set of precision air-conditioners to keep the temperature inside the container around 25C.
6. Lighting system: lncluding emergency light and lighting, are available in the allcontainers
7. Fire system: FM 200, an advanced automatic fire extinguishing system with audible and visual alarm, is installed inthecontainer. The container can be hermeticallv sealed by the automatic shut-down svstem once the fre extinguishing svstem isactivated.
Features:
- Product Name: Container Energy Storage System
- Adaptive voltage range: 1000- 1500V
- Battery Type: 3.2V 280Ah Lifepo4 Battery
- Dimension(DxWxH 7.53): 12192*2438*2896mm
- MAX Capacity: 7.53 MWh
- Weight: 69T
- Containerised Energy Storage System
- Container Energy Storage System
- Off-Grid Energy Storage System

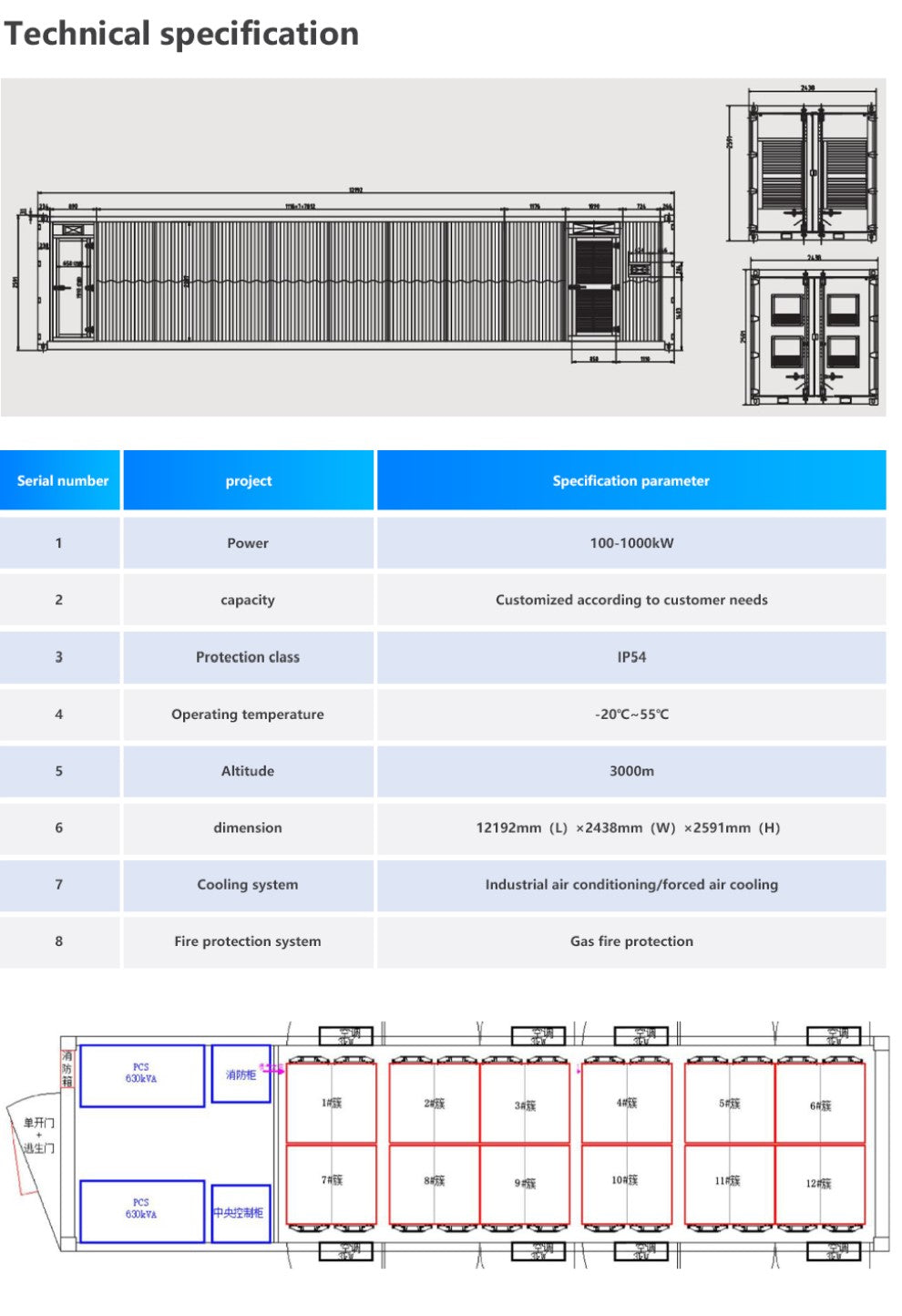

Technical Parameters:
| Parameter | Details |
|---|---|
| Type of Container | 40 HC |
| Max. Capacity | 7.53Mwh |
| OptionalCapacity | 6.67-7.53Mwh |
| Adaptive voltage range | 1075.2- 1382.4V |
| Charge and Discharge Ratio | 0.5CP |
| Battery Cell Parameter | LFP-3.2V-280Ah-896Wh |
| Module Parameter | LFP-153.6V-280Ah-43.008kWh |
| Cycle Life | 8000 Cycles(90% DOD.>70%EOL) |
| Cycle Efficiency | >94% (DC Side ) |
| BMS Scheme | Active Equalization+ Three- level Architecture |
| Communication Interface | Ethernet/RS- 485/CAN/LAN |
| Communication Protocol | Modbus-TCP/IEC61850104 |
| Temperature Control Scheme | Liquid-Cooling |
| Fire Extinguishing Scheme | Gas/ Smoke/ Temperature Detection+ Heptafluoropropane+ Water+ Perfluorohexanone( Optional) + Active Air Exhaust |
| Insulation Resistance | > 10MΩ |
| Auxiliary Power Supply | AC380V-50HZ |
| Altitude |
<5000m (> 3000m Capacity Reduction)
|
| Allowable Ambient Temperature | -30~+50C |
| Allowable Relative Humidity | -0 - 95%Rh ( without Condensation ) |
| Ingress Protection | IP65 |
| Corrosion- proof Grade | C4 (C5 Optional) |
| Dimension ( L* W*H) | 12192*2438*2896mm |
| Full Weight | 69T |
| Product Certification | GB/T36276 ,GB/T34131 ,UL1973 ,UL9540A ,IEC62619 ,UN38.3 |
