KonkaEnergy

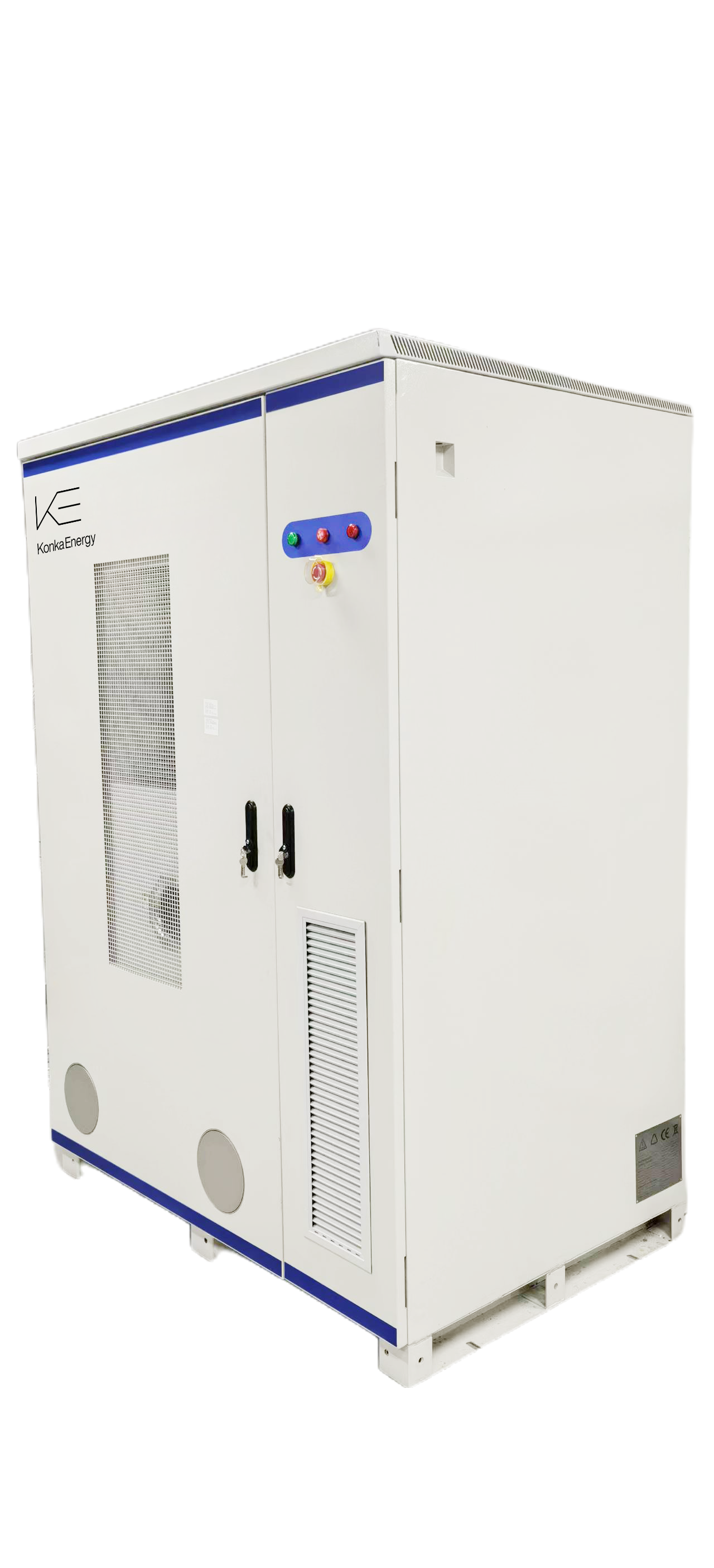

215kWh On / Off Grid BESS Cabinet
215kWh On / Off Grid BESS Cabinet
KonkaEnergy Outdoor Separate Battery Cabinet Series (215kWh)
The KonkaEnergy Outdoor Separate Battery Cabinet Series, a safe, reliable, and highly scalable solution designed for modular energy storage projects. This system utilizes premium battery technology and intelligent thermal management to deliver optimized performance for commercial and industrial applications.
Core Advantages
- Safe and Reliable: Features EVE LFP (Lithium Iron Phosphate) battery cells, known for providing the highest level of safety.
- Built-in Protection: Integrated multi-level BMS (Battery Management System) protection ensures the health and longevity of the system.
- Propagation Prevention: Housed in individual IP54-rated metal cabinets designed to prevent fire propagation between units.
- Modularization and Scalability: The system is flexibly scalable at both the power and capacity levels, allowing for easy expansion in the future as energy needs grow.
- Advanced Thermal Management: Each cabinet includes individual temperature control via internal air conditioning to optimize cooling efficiency.
Technical Specifications (215kWh Cabinet)
|
Parameter Term |
Parameter Value |
|
Cell Type |
LFP 3.2V / 280Ah |
|
Rated Capacity |
215kWh |
|
System Configuration |
1P240S (referenced as 1P15S in sub-module layout) |
|
Rated Voltage |
768V |
|
Depth of Discharge |
90% DOD |
|
System Efficiency |
≥ 85% |
|
Operating Temperature |
-10°C to 45°C |
|
Protection Class |
IP54 |
|
Fire Protection System |
FM-200 |
|
Dimension (W x H x D) |
1200 × 2085 × 1000mm |
|
Weight |
2000kg |
Intelligent Operation & Monitoring
- 24/7 Remote Monitoring: Track the real-time state of your energy storage system remotely without the need for on-site duty.
- Remote Alarm Mechanism: Built-in alerts reduce response delays for critical events, ensuring continuous uptime.
- Communication: Standard network port interface for seamless data integration.
System Configuration Options
For larger projects, these cabinets can be configured into high-power systems:
- 250kW / 645kWh System: Utilizes a 3P1S cabinet configuration.
- 500kW / 1075kWh System: Utilizes a 5P1S cabinet configuration.
